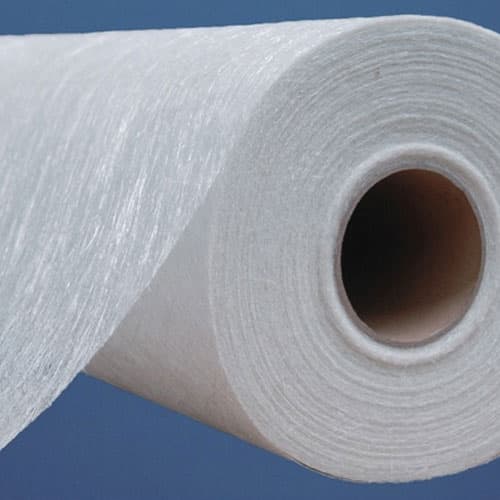

CPIC Mat 250gsm 1.2mm
CPIC · China Fiberglass Inc.
CPIC Mat 250gsm 1.2mm
Shipbuilding
Technical Specifications
| Weight | 250 g/m² |
|---|---|
| Thickness | 1.2 mm |
| Application | Shipbuilding |
| Supplier | China Fiberglass Inc. |
Glass Fiber Mats Technical Data Sheet (TDS)
Glass fiber mats are non-woven reinforcement materials composed of randomly oriented chopped strands or continuous filaments. They are primarily used in FRP (fiber-reinforced plastic) processes, including hand lay-up, pultrusion, and compression molding, offering excellent resin compatibility, formability, and mechanical reinforcement.
Product Classification
| property | value |
|---|---|
| Product Types | Chopped Strand Mat (CSM), Continuous Filament Mat (CFM), Stitch-Bonded Mat (SBM), Combo Mat |
| Binder Types | Emulsion (E) or Powder (P) |
| Fiber Type | E-glass (Standard), C-glass (Chemical-resistant) |
General Specifications
| property | value |
|---|---|
| Grammage | 100 – 900 g/m² (standard); Combo Mat up to 2000 g/m² |
| Width | 1000 – 3200 mm (customizable) |
| Binder Content | 3 – 7% |
| Moisture Content | ≤ 0.2% |
| Loss on Ignition (LOI) | 2 – 12% |
| Thickness | 0.3 – 1.2 mm depending on type |
| Resin Compatibility | Polyester, Vinyl Ester, Epoxy, Phenolic |
| Roll Inner Diameter | 76 mm (standard) |
| Packaging | PE film wrapped, carton or palletized |
Mechanical & Physical Properties
| property | value |
|---|---|
| Tensile Strength (Warp) | ≥ 100 – 200 N/5cm |
| Tensile Strength (Weft) | ≥ 90 – 180 N/5cm |
| Thickness Tolerance | ±10% |
| Weight Tolerance | ±5% |
| Volatile Content | ≤ 0.5% |
| Thermal Resistance | Up to 600°C (E-glass) |
| Electrical Insulation | Excellent |
Features & Advantages
- Uniform fiber distribution for consistent mechanical properties
- Fast wet-out and good resin penetration for increased production efficiency
- High tensile strength and dimensional stability
- Excellent formability around complex contours
- Low fuzz and dust for cleaner working conditions
- Chemical resistance to acids, alkalis, and organic solvents (especially for C-glass mats)
Typical Applications
- Hand lay-up and spray-up FRP manufacturing
- Boat hulls, water tanks, bathware, automotive panels
- Pultrusion profiles (SBM, Combo Mat)
- Pipe wrap and laminated sheet production
- Molded parts in construction, marine, and transportation industries
- Electrical insulation in transformers and switchgears (CFM)
Handling & Storage
- Store in a dry, clean, and well-ventilated warehouse
- Keep away from direct sunlight and moisture
- Recommended storage temperature: 15–35°C, humidity < 65%
- Rolls should be kept vertically or laid flat with no stacking over 2 layers
Quality Control
All mats are subjected to strict quality inspection including:
- Area weight and thickness verification
- Tensile and peel strength testing
- Binder and moisture content analysis
- Visual inspection for uniformity, defects, and contamination
For custom sizing, binder formulations, combo mat configurations (e.g., mat + woven roving), or technical support, please contact our sales and engineering team.
